HB70 European Standard Thermal Break Windows&Doors
HB70 European standard thermal break windows and doors
HB70 European Standard Thermal Break Windows&Doors
HB70 European standard thermal break windows and doors
Sales Count: 0
Click: 1200
Shipping: Free Shipping
Detail

HB70 European standard thermal break windows and doors

Advantage:

1.European standard tank system design,beautiful and delicate,no leakage processing hole;

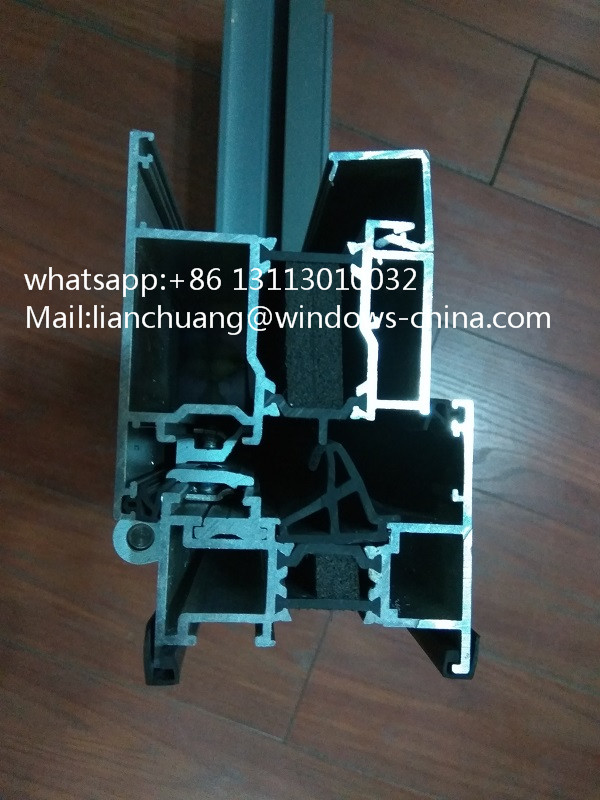

2.3-cavity structure,Multi-cavity has a high sound insulation and energy saving.

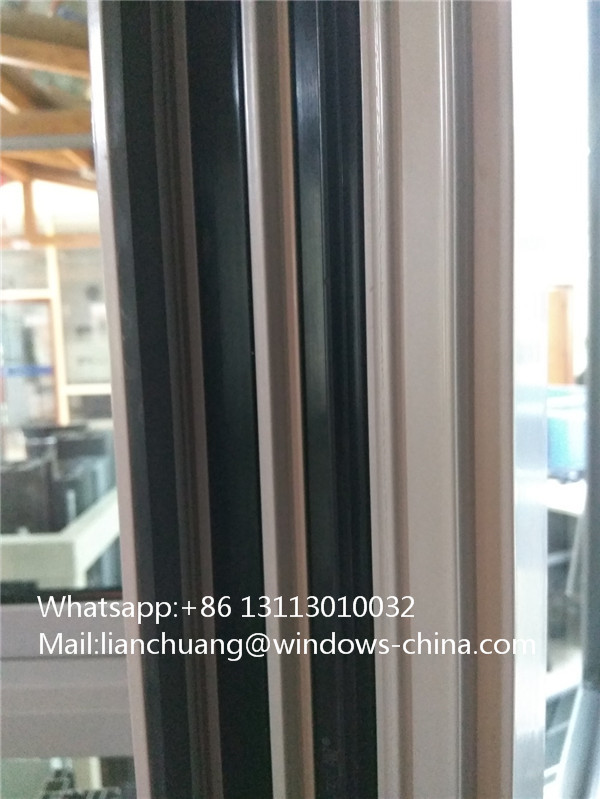

3.3-level EPDM seal,higher air tightness. Indoor and outdoor sealing strip adopts EPDM soft hard co-extrusion method,

open/close force smaller,sealed performance is higher.


AVAILABLE STYLE:

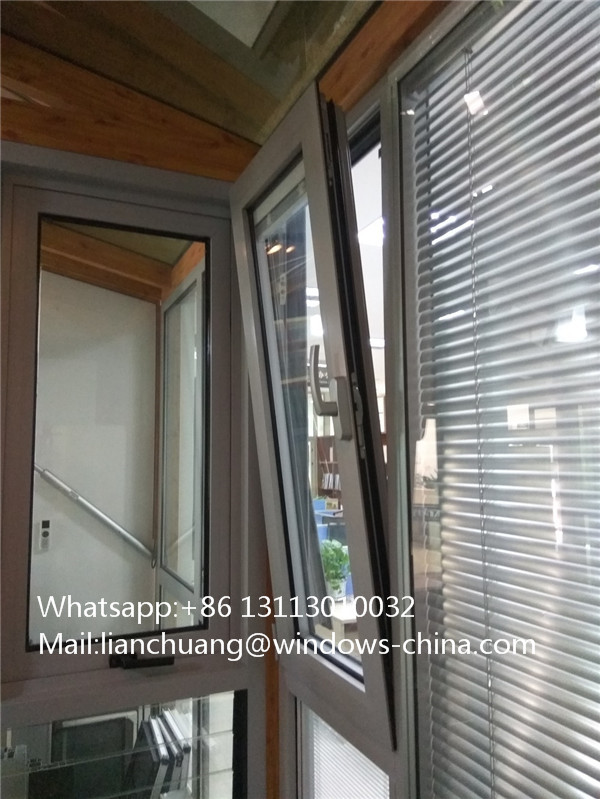

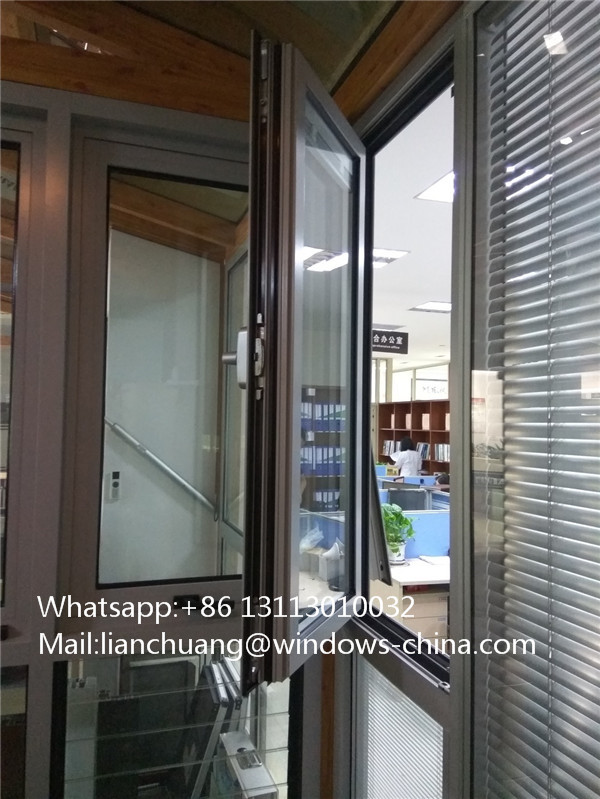

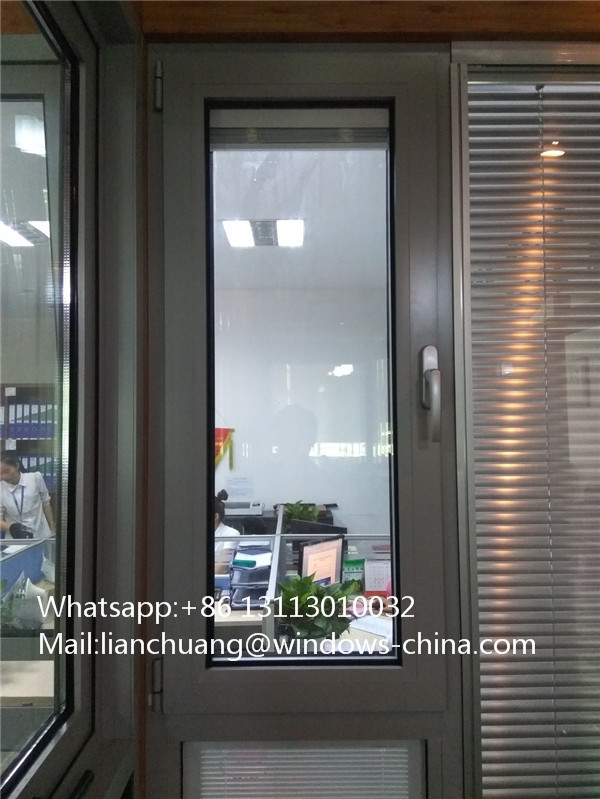

Fixed/Casement/Tilt-turn/Bi-folding


Specification:

Frame Material: Chinese top ten brand 6063-T5 Aluminium alloy

Profile thickness:2.2mm for windows/2.3mm for doors

Glass:5+12A+5 double tempered glass or laminated glass and customized

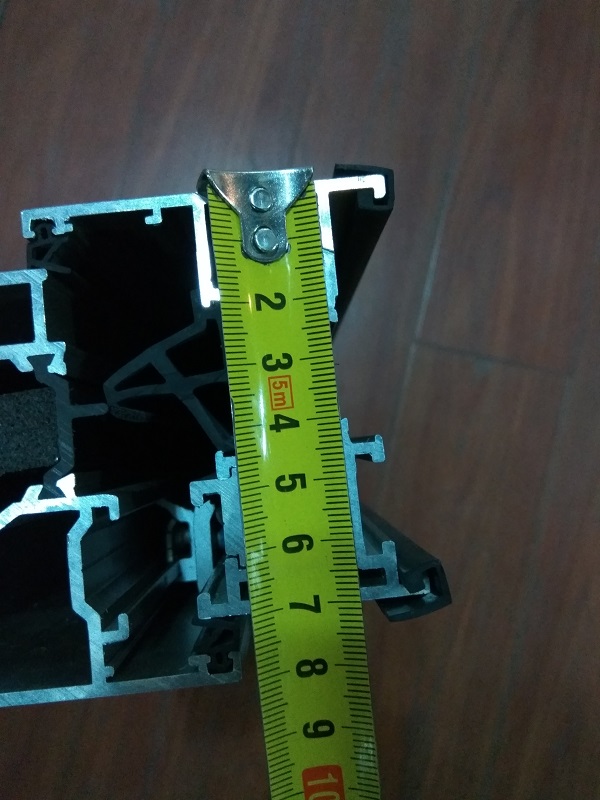

Frame structure width:70mm

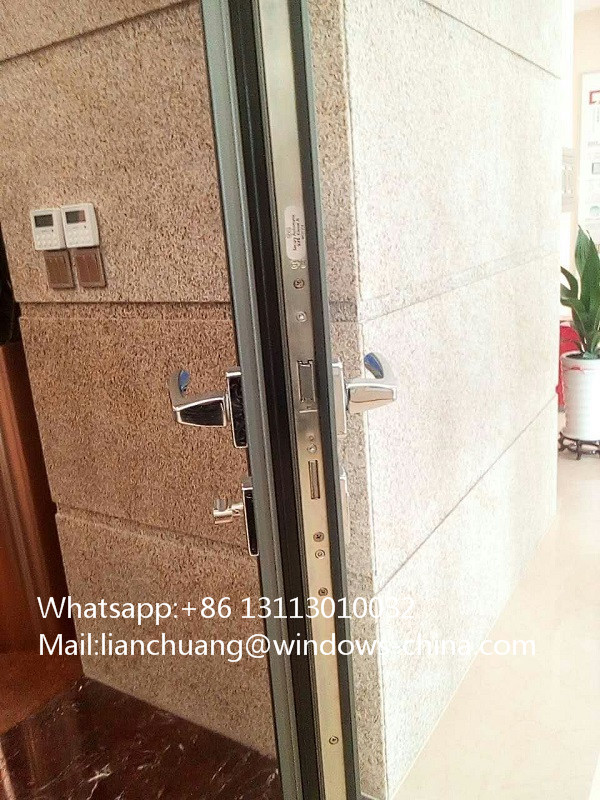

Hardware: Whole German G-U and HOPPE handle


Flyscreen: Fixed Screen outside when it is made tilt-turn window


Package:Wooden case or Steel structure:
